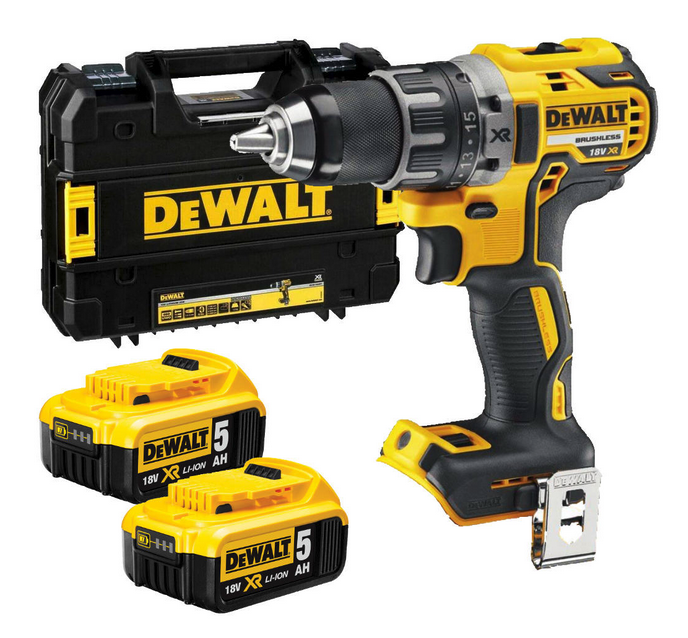

SOP for the battery-powered DeWalt drill

← Back to Appendix 4

1. Purpose

To ensure safe and effective use of a battery-powered DeWalt drill for drilling and screwdriving tasks.

2. Scope

This procedure covers the operation, maintenance, and safety guidelines for the DeWalt cordless drill.

3. Safety Precautions

  • Always wear appropriate personal protective equipment (PPE): safety glasses and hearing protection, if necessary.
  • Ensure the work area is clean, well-lit, and free of hazards.
  • Inspect the drill and battery for obvious damage before use.
  • Keep the drill away from rain or wet conditions to avoid electric shock.
  • Never attempt to change drill bits or accessories with the drill powered on.
  • Use only genuine DeWalt batteries and chargers.
  • Bring the drill to the supervisor/GSR if it is faulty or damaged.

4. Pre-Operation Checks

  • Verify that the battery pack is charged.
  • Confirm the drill is switched off before inserting the battery.
  • Inspect drill bits or screwdriving accessories for wear or damage.
  • Ensure the drill’s chuck is open enough to accept the drill bit.

5. Assembly

  • Align the battery pack with the drill handle slots and slide it in until it clicks securely.
  • Check the battery pack is firmly locked in place.
  • Select the appropriate drill bit or accessory.
  • Open the chuck by turning it counterclockwise and insert the drill bit fully.
  • Tighten the chuck by turning it clockwise firmly by hand.

6. Operation

  • Turn the mode selector to the desired setting (drilling, screwdriving with appropriate clutch setting).
  • Select the speed according to the task (use lower speed for high torque tasks, higher speed for wood drilling).
  • Hold the drill firmly.
  • Apply steady pressure in a straight line with the drill bit or screw.
  • Squeeze the trigger to start the drill; release the trigger to stop.
  • Use the forward/reverse switch for tightening or loosening screws.
  • Avoid continuous use at variable speeds to prevent switch damage.
  • When drilling, keep the motor running while pulling the bit out to avoid jamming.

7. Post-Operation

  • Turn off the drill and release the trigger.
  • Remove the battery pack by pressing the release buttons and pulling it out.
  • Clean dirt and dust from vents and exterior with a dry cloth or compressed air.
  • Store the drill and batteries in a cool, dry place.
  • Recharge the battery if needed using only the designated DeWalt charger.

8. Maintenance

  • Regularly inspect and clean air vents to prevent overheating.
  • Never perform mainenance on the drill by yourself, report every suspicious machine functionality to GSR.
  • Have repairs performed by certified service centers.
  • Never use solvents on plastic parts; clean with mild detergent and damp cloth.
