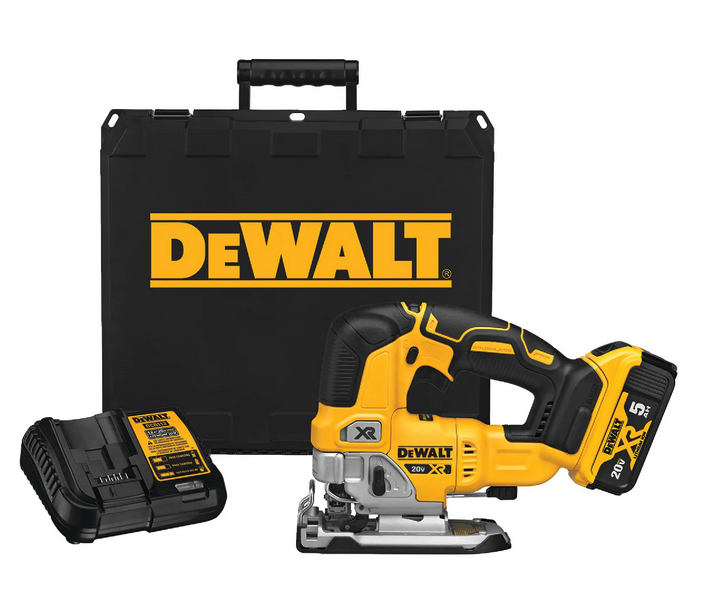

SOP for the battery-powered DeWalt jigsaw

← Back to Appendix 4

1. Purpose

To ensure safe and effective use of the DeWalt cordless jigsaw for cutting wood, metal, plastic, and other materials.

2. Scope

This procedure applies to all operators using DeWalt battery-powered jigsaws.

3. Safety Precautions

  • Always wear safety glasses, hearing protection, and a dust mask.
  • Use appropriate gloves but avoid wearing gloves that could catch in moving parts.
  • Keep work area clean, well-lit, and free of distractions.
  • Do not use the jigsaw if it is damaged. or if metal safety guard in front is missing.
  • Disconnect the battery before making adjustments or changing blades.
  • Avoid loose clothing, jewelry, and contain long hair to prevent entanglement.
  • Use only DeWalt-branded batteries and chargers compatible with the model.
  • Ensure the jigsaw shoe (base plate) is securely attached during operation.

4. Pre-Operation Checks

  • Inspect the jigsaw, battery, and charger for damage.
  • Select the appropriate blade type for the material to be cut.
  • Ensure the blade is correctly installed and secure.
  • Check the orbital action lever and bevel settings are adjusted as desired.

5. Assembly and Blade Installation

  • Install the battery by sliding it into the handle until it clicks in place.
  • To install or remove the blade, lift the keyless blade release lever and insert or remove the blade carefully.
  • Avoid touching the blade edges, as they may be sharp or hot.
  • Adjust the shoe bevel by unlocking the bevel lever, setting the angle, and re-locking it.
  • Attach dust port as needed.

6. Operation

  • Hold the jigsaw firmly with both hands for stability.
  • Start the tool by squeezing the trigger; speed will vary with pressure applied on the trigger.
  • Use the trigger lock button to lock the tool off when not in use to prevent accidental starts.
  • Guide the jigsaw steadily along the cutting line without forcing it.
  • Allow the blade to reach full speed before cutting.
  • Do not twist or bend the blade while cutting to avoid damage.
  • Utilize the orbital action setting for faster cuts in wood; turn it off for fine cuts or harder materials.
  • Use the dust blower control to keep the cut line visible.

7. Post-Operation

  • Release the trigger and allow the blade to stop fully before setting the tool down.
  • Remove the battery by pressing the release button and sliding it out.
  • Clean the jigsaw of dust and debris; use compressed air for vents if necessary.
  • Inspect the blade for wear and replace as needed.
  • Store the jigsaw and batteries in a designated box and cabinet.

8. Maintenance

  • Regularly check for loose screws or parts.
  • Keep air vents clean to prevent overheating.
  • Lubricate moving parts sparingly as recommended in the manual.
  • Do not attempt to service the battery; refer to authorized service centers for battery or tool repair.
