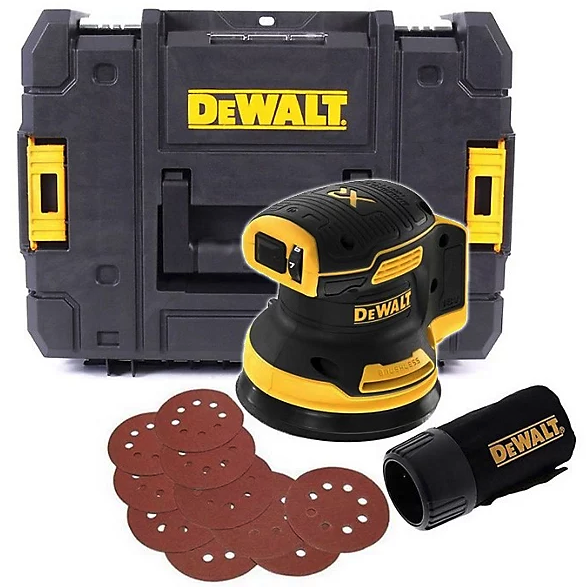

SOP for DeWalt DCW210N Cordless Random Orbital Sander

← Back to Appendix 4

1. Purpose

To provide safe and effective use instructions for the DeWalt DCW210N 20V Max 5-inch brushless cordless random orbital sander for sanding wood, metal, plastics, and painted surfaces.

2. Scope

This SOP applies to operators using the DeWalt DCW210N orbital sander in various professional and DIY applications.

3. Safety Precautions

  • Always wear safety glasses, hearing protection, and a dust mask.
  • Avoid loose clothing, jewelry, and secure long hair to prevent entanglement.
  • Do not use the sander in damp or wet environments or near flammable liquids.
  • Disconnect the battery pack before making any adjustments or changing accessories.
  • Use only DeWalt recommended batteries and chargers.
  • Use dust extraction to maintain a clean working environment and protect respiratory health.

4. Pre-Operation Checks

  • Inspect the sander, sanding pad, and battery for any damage.
  • Confirm the battery is charged.
  • Use hook and loop sanding discs (127 mm) with the 8-hole dust pattern recommended for this model.
  • Check that the sanding pad and disc are clean and properly aligned.
  • Ensure the dust collection bag or vacuum connection is securely attached if used.

5. Assembly and Setup

  • Attach the sanding disc by aligning the holes and pressing onto the hook and loop pad.
  • Mount the battery pack into the tool handle until it clicks securely.
  • Connect the dust bag or the vacuum hose to the dust extraction port if available.

6. Operation

  • Turn the sander on by pressing the “I” side of the dust-sealed on/off switch.
  • Adjust the variable speed dial to set the speed between 8,000 and 12,000 orbits per minute (OPM) based on the material and application:
    • Higher speeds for harder materials and rapid material removal.
    • Lower speeds for softer materials and finer finishes.
  • Hold the sander firmly with both hands, keep the pad flat on the work surface.
  • Move the sander in smooth, overlapping motions without applying excessive pressure.
  • Keep the sanding pad moving constantly to avoid gouging the surface.
  • Use the dust extraction during operation to reduce airborne dust and improve visibility.

7. Post-Operation

  • Turn off the sander using the “O” side of the switch.
  • Wait until the sander comes to a complete stop before setting it down.
  • Remove the battery pack by pressing the release button and sliding it out.
  • Empty and clean the dust bag; if connected to a vacuum, check the vacuum system.
  • Clean the sanding pad and tool body from dust and debris.
  • Inspect the sanding disc for wear and replace as needed.

8. Maintenance

  • Regularly inspect and clean vents to prevent overheating.
  • Replace worn sanding pads and discs with DeWalt-approved parts.
  • Keep switch and motor dust-sealed to prolong tool life.
  • Store the tool and batteries in the designated container and cabinet.
  • Have repairs performed by authorized service centers.
