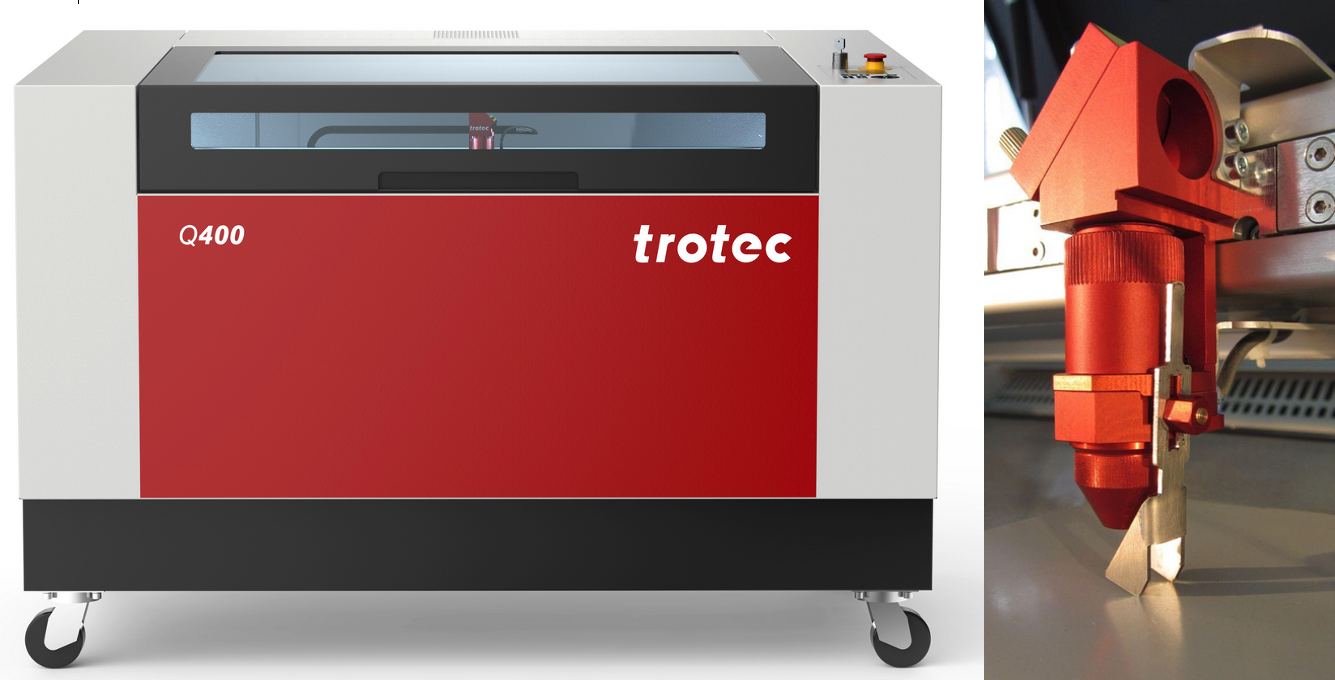

SOP for the Trotec Q400 Laser Cutter

← Back to Appendix 4

1. Purpose

Ensure the safe, efficient, and correct use of the Trotec Q400 laser cutter for material engraving or cutting, while protecting users, bystanders, and equipment.

2. Scope

Applies to all personnel trained and authorized to operate, maintain, or supervise the Trotec Q400 laser cutter in a laboratory, classroom, or workshop environment.[6]

3. Responsibilities

  • Operator: Perform all checks, operate safely, and report issues.
  • Supervisor/GSR: Maintain machine, review procedures, and provide training.

4. Equipment Checklist

  • Trotec Q400 laser cutter
  • Required workpiece material (CO₂ laser compatible)
  • Appropriate exhaust/filtration systems running
  • PPE: safety glasses (laser-rated), no reflective clothing/jewelry
  • Computer with Trotec Ruby software

5. Safety Precautions

  • Only trained users may operate the laser.
  • Never operate the Q400 with housing/interlocks bypassed or defective.
  • Always use the extraction system to remove fumes and particulates.
  • Never leave the laser running unattended.
  • Remove all flammable objects from the enclosure before starting.
  • Maintain a clean area around the machine; avoid clutter.
  • In case of fire or malfunction, immediately use emergency stop and follow building procedures.
  • Do not engrave/cut materials not verified as safe for CO₂ lasers, e.g., never cut/engrave PVC.

6. Pre-Operation

  1. Visual Inspection:
    • Ensure lens, mirrors, and glass are clean.
    • Confirm laser bed is clear of debris from previous operations.
    • Inspect enclosure and interlocks.
  2. Material Preparation:
    • Place approved material flat on bed. Secure if needed (avoid warping or movement).
  3. Power Up:
    • Switch on the main machine power and the PC with Trotec Ruby software.
  4. Focus and Home:
    • Focus laser using the provided focusing tool or SonarTechnology™ auto-focus.[5][6]
    • Home the machine (move to origin).
  5. File Setup:
    • Open or import project file in Trotec Ruby. Ensure correct vector/raster mode is selected and all elements are set to correct “hairline” or color coding for cutting vs. engraving.
  6. Parameter Check:
    • Set speed, power, and frequency to recommended values for the material and process. Reference Trotec’s database or your prior experience.
    • Setting correct parameters may require testing on scrap material first.

7. Operation

  1. Preview:
    • Use Trotec Ruby’s outline/preview mode to check laser path.
    • Verify job boundaries fit within the workpiece.
  2. Run Job:
    • Close the lid fully and check all safety interlocks.
    • Start the job. Monitor process at all times—never leave unattended.
    • The exhaust system should start automatically; ensure it is functioning, if not, stop the job immediately.
  3. Intervene if Needed:
    • Press the emergency stop or open the lid to stop the laser immediately in case of problem.[6]

8. Emergency Procedures

  • Fire: Use emergency stop; if safe, extinguish fire with CO₂/dry chemical extinguisher or fire blanket.
  • Fume Exposure: Stop machine, evacuate area, seek medical evaluation if exposed.
  • Electric/Laser Hazard: Disconnect from power; do not attempt repairs unless authorized.

9. Post-Operation

  1. Job Completion:
    • Wait for all motion to stop before opening the lid.
    • Wait another 30 seconds for the fumes to be fully extracted before opening the lid.
    • Remove finished item and inspect for completeness.
  2. Clean-Up:
    • Remove any debris/scrap from bed and surrounding area.
  3. Shutdown:
    • Power down the machine (the exhaust system should have powered down automatically).
    • Do not power down, nor close the screen of the PC; log out/lock the computer instead.

10. Maintenance (Operator Tasks)

  • Clean optics as scheduled or when needed.
  • Inspect/care for air assist, fans, and filters.
  • Report any faults or errors to the supervisor/GSR.
